5w Equivalent White Side and Red Tail Light Bulbs
BA9s is a 9mm cap with parallel pins and a single contact which is live, the cap body being earth commonly used in side lights and dashboards in post 1960 vehicles
T10 is a 10mm wide push in fitting with 2 wire contacts often found in side lights and dashboards on 1970's and 1980's vehicles
BA15d is a 15mm cap with parallel pins and 2 contacts of which one is live and the other is earth often used in pre 1930 cars and some 1930's higher quality cars
BA15s is a 15mm cap with parallel pins and one contact which is live, the cap body being earth, commonly used in 1930's/40's side and dash lamps
Part No. 1
5w White - 12 LED - BI-POLARITY
BA15s or BA15d fittings
Shines a white light all round
Direct replacement ultra low power consumption 12 SMD LED bulb.
Replaces parallel pin type filament bulbs.
For use in front sidelights.
18mm diameter.
Ideal for use in dash board lighting or as a day running light

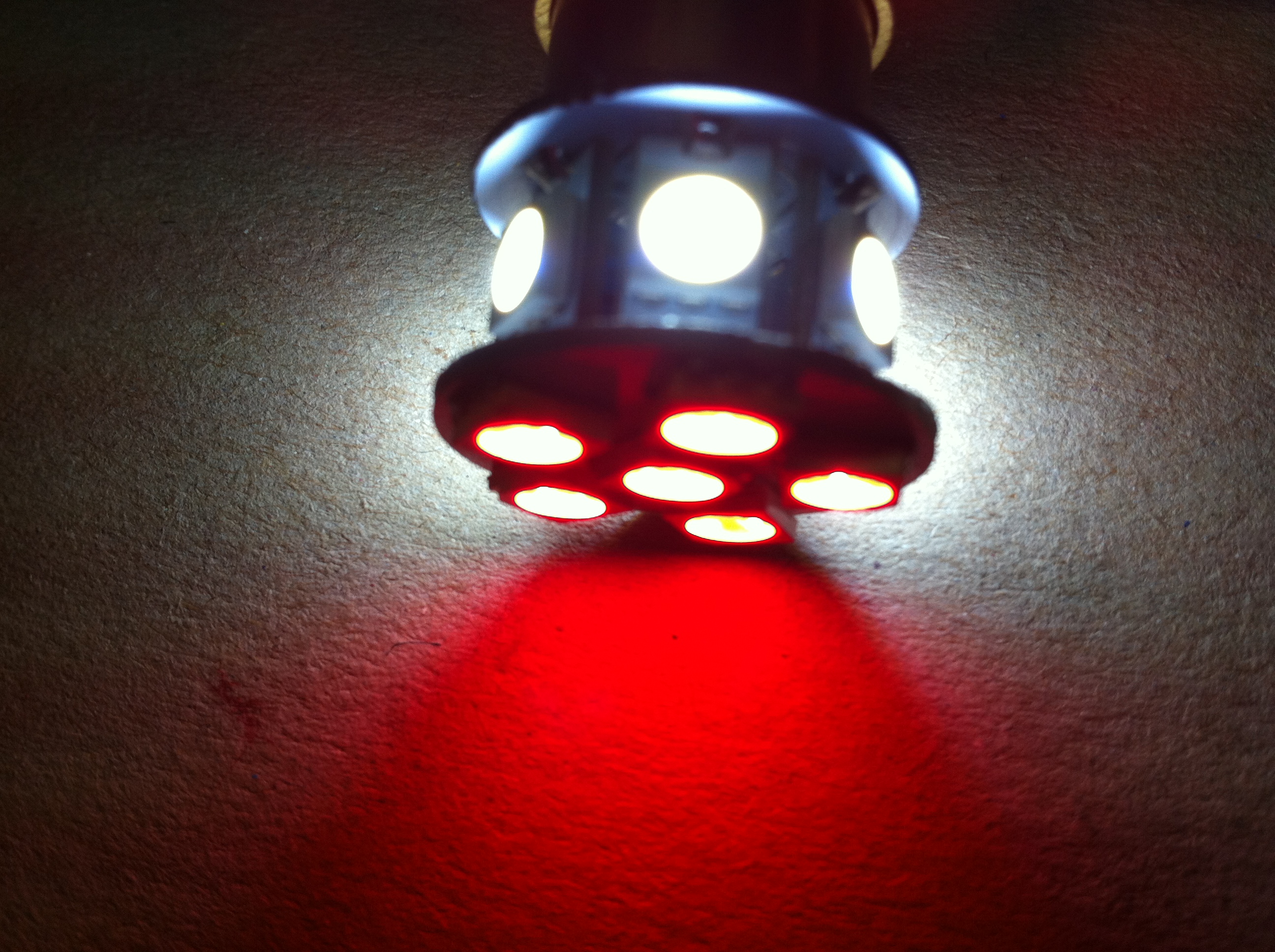

Part No. 3
5w equivalent tail and number plate only
Standard BA15s cap
Suits Lucas MT barrel type lamps
Direct replacement ultra low power consumption LED bulb.
33mm (1 1/4") long. 21mm wide (13/16")
Special design shines bright red rearwards/outwards to light the whole lens for tail and white around/down for bright number plate illumination.
Available in 6 and 12v bi polarity.

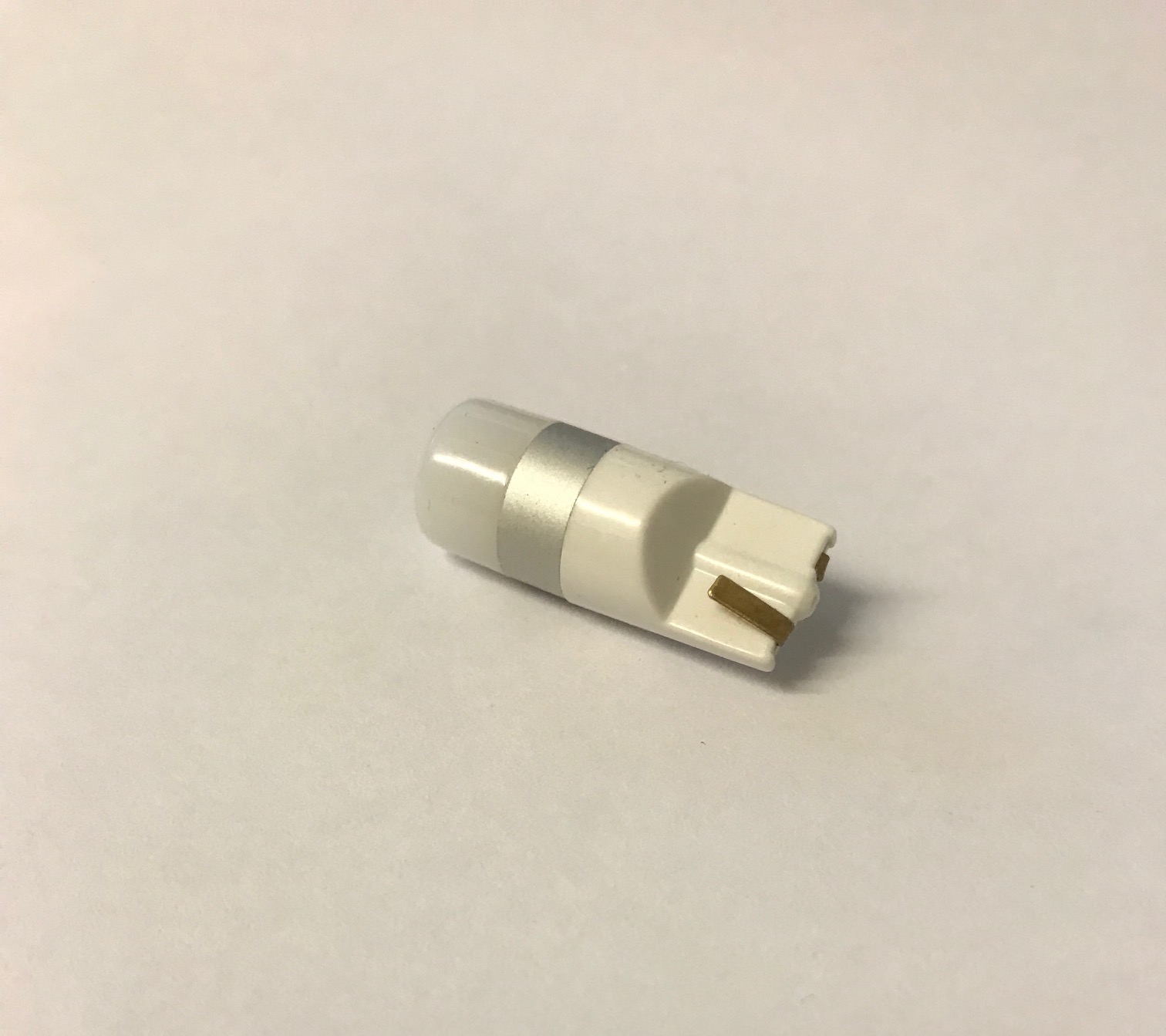

Part No. 5
6 & 12v in one bulb
T10 wedge fitting. 10w white - Bi-polarity
Shines a very bright, white light all round
Direct replacement ultra low power consumption LED bulb
Replaces standard T10 filament bulbs
Overall length 29mm
Ideal for dashboards and individual clocks
For use in late side lamps and also Austin Sevens with repro headlamps
Part No. 2
5w White BA15s - 9 LED - BI POLARITY
Shines white outwards
Direct replacement ultra low power consumption bulb.
Replaces parallel pin type front side light filament bulbs.
For use in front sidelights where space is limited.
Ideal for use as a day running light
Part No. 4
5w Red - 12 LED
BA15s fitting
6 or 12v negative or positive earth
Shines a red light all round
Direct replacement ultra low power consumption 12 SMD LED bulb.
Replaces parallel pin type filament bulbs.
For use in tail lights with separate stop/tail bulbs where the bulb faces the lens.
18mm diameter.
Part No. 6
BA9s WHITE - BI POLARITY
Direct replacement.
Diffused - 6/12v in one bulb (right) - Extra bright.
Use in sidelights and dashboard lights
Use in number plate lights
Excellent light spread.
Dimmable.
Replaces parallel pin type filament bulbs
