 Wiring diagrams to help you fit a converted dynamo or regulator or both.

Click on each one to enlarge it

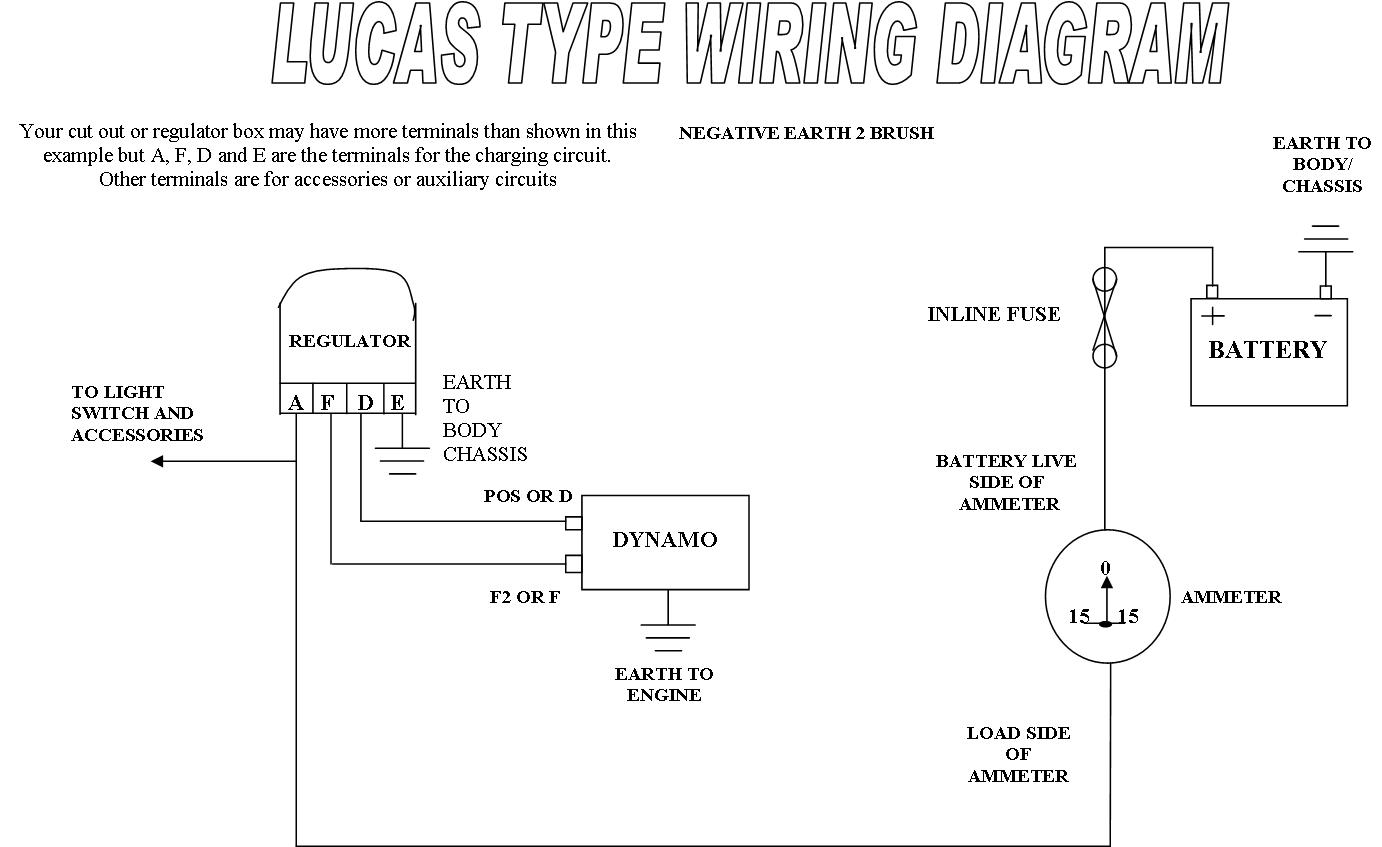

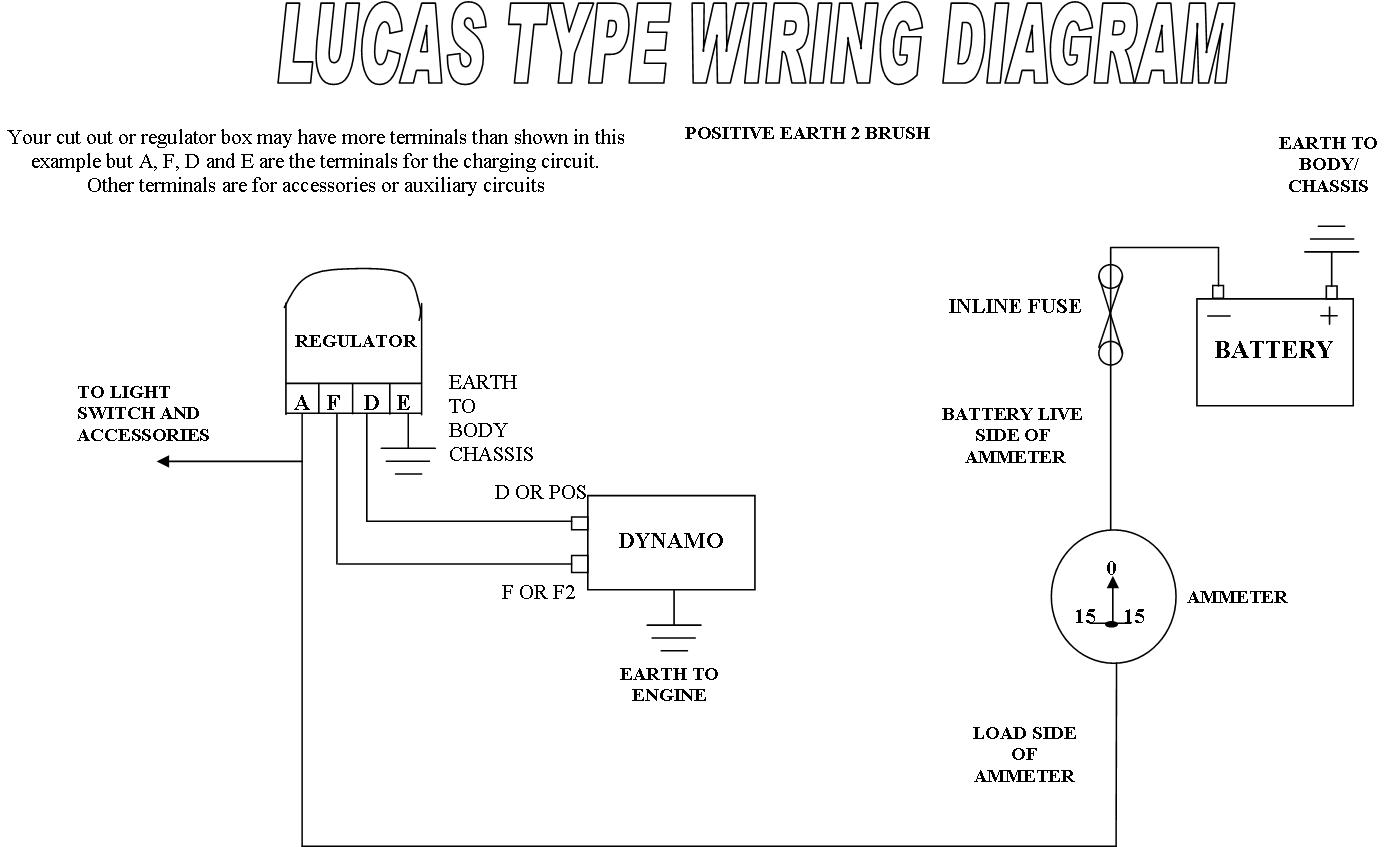

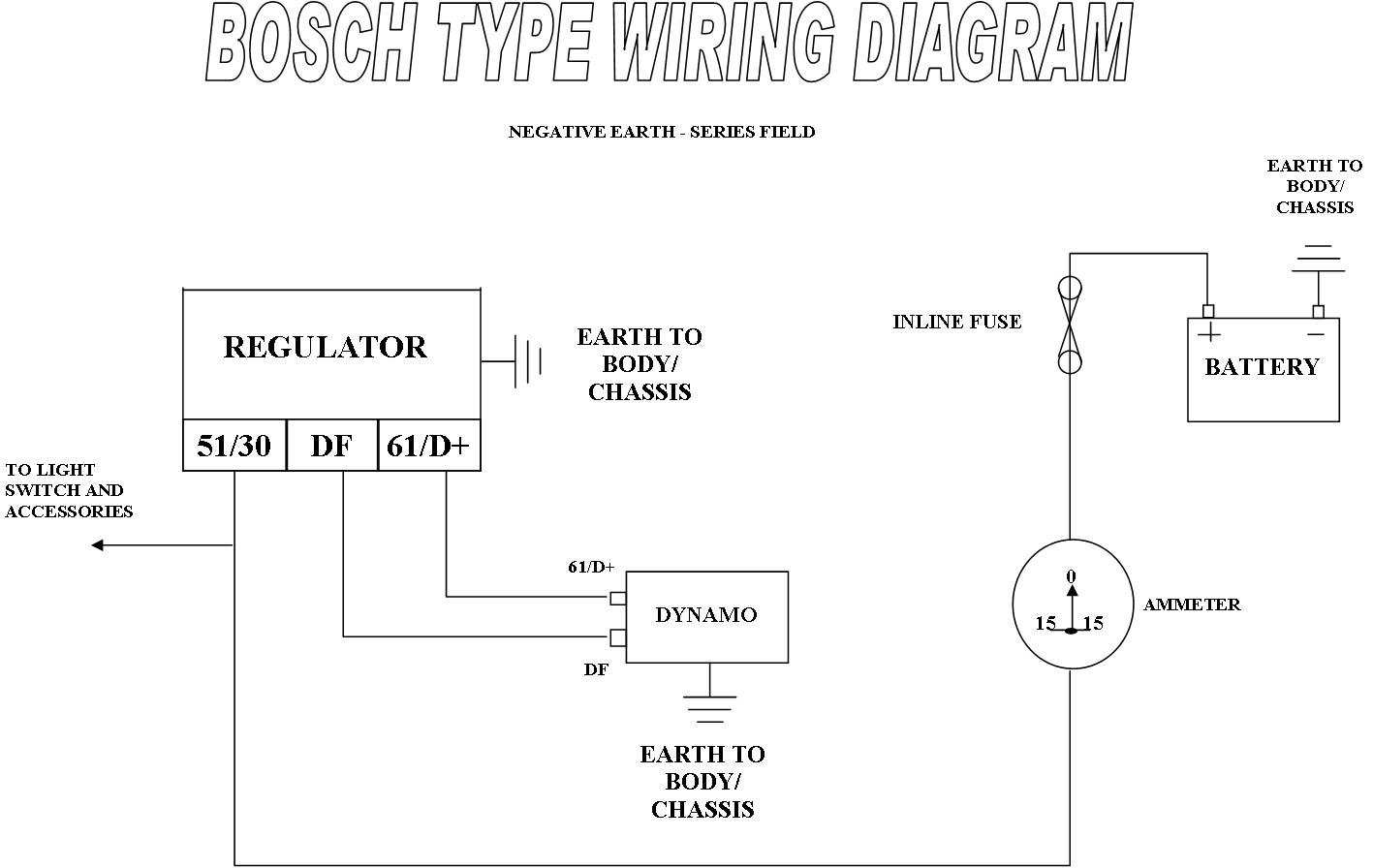

                           BOSCH                                    LUCAS                                   LUCAS                  LUCAS 2 BRUSH CONVERSION

                       NEG EARTH                        NEG EARTH                          POS EARTH              WITH  CUT OUT CONVERTED

                                                                                                                                                                TO ELECTRONIC REGULATOR

Use the relevant diagram along with the supplied written instructions to check your wiring and connections during and after installation and


A wiring diagram is included with your regulator or dynamo on return when alterations are required

Flashing indicators

2 pin and 3 pin LED Flasher Units

Our 3 pin units work the same way as our 2 pin units but use the 3rd pin to power the indicator tell tale lamp on the dashboard.

3 pin flasher units won't work on positive earth vehicles but this can be overcome by using our 2 pin flasher unit and our positive earth flasher fix kit.

Connection instructions are supplied with our flasher units as connections differ between negative and positive earth.

We cannot guarantee that our bulbs will work with other types of LED flasher unit. If in doubt use our positive or negative earth bulbs.

2 pin flasher unit wiring diagram

Below is a diagram for connecting flashing indicators to work with trafficators
Generally a 3 pin LED flasher unit is used either having the 3rd pin feeding a tell-tale or in some cases, going to earth.
LED flasher unit markings vary so check before you connect or contact us for advice.
