Our range of LED light boards are designed to suit the needs of all Vintage and Classic car owners.
Use them for ultimate light output in any lamp but especially those where the original bulbs face upwards, downwards or sideways.
We make our LB2 light boards for Lucas ST38 and ST51 rear lamps to give ultimate light output and spread.
Our LB5 and LB6 light boards convert ST38, ST51 and HELLA lamps to include hidden flashing indicators.
Use our LB3 and LB4 universal light boards to convert most other rear lamps to efficient and bright LED operation
Use our LB7 amber light board to convert indicator lamps, especially those that used festoon bulbs.
Easy to fit - Fitting kit supplied and just 2, 3 or 4 wires to connect depending on type.
Always use a heat gun when installing lightboards - the wires, when warmed will be easy to manipulate. When they cool they will remain shaped.
They can also be stuck into place using silicone if space is tight.
No wiring alteration is needed but wiring should be in good condition.
See below for the complete range to convert all stop/tail lamps and indicator lamps. Examples of the lamps that can be converted are shown in the relevant sections.
Part No. LB1
*Lamps pictured are for example*

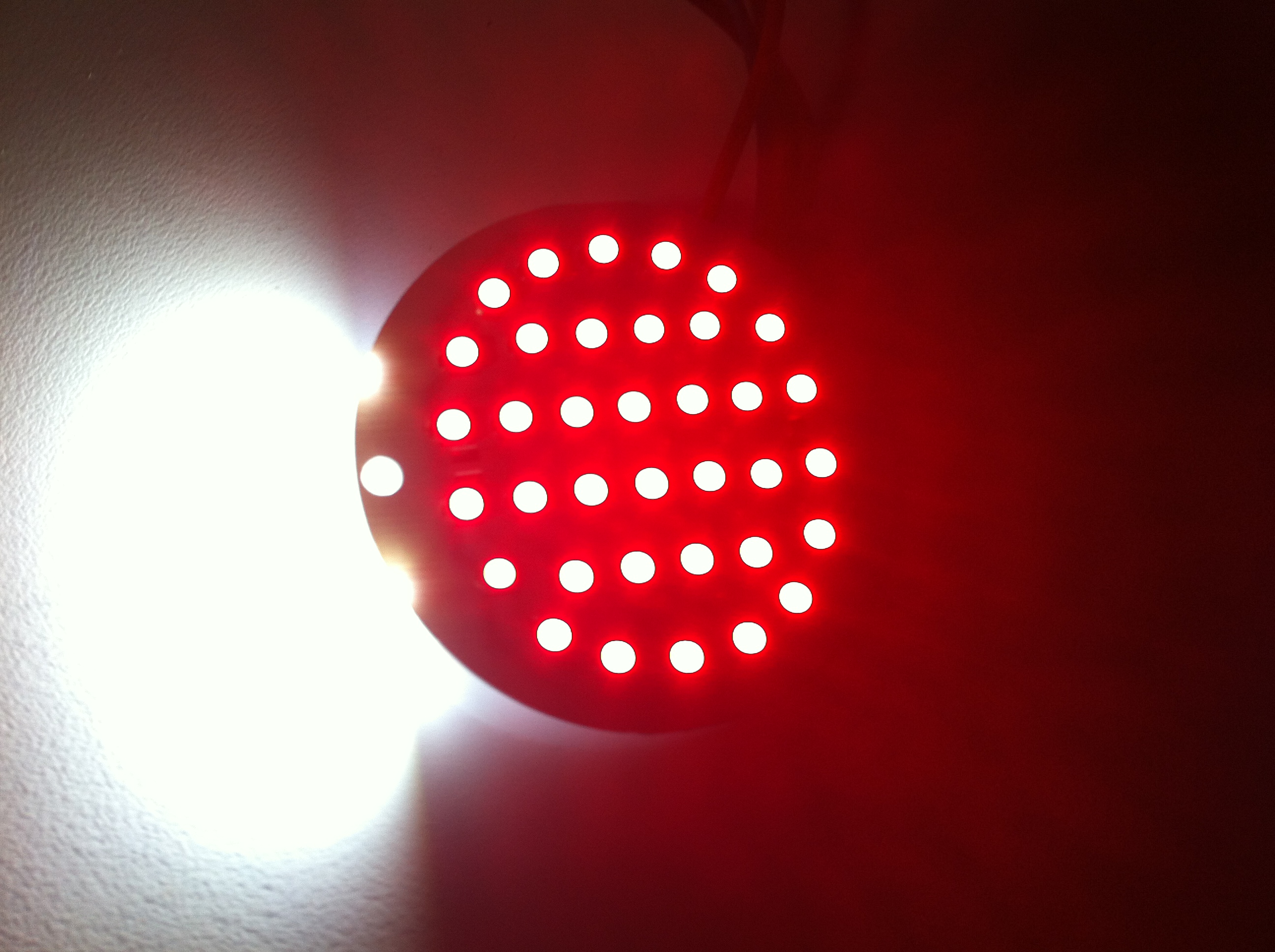

40mm diameter light board pictured top left.
21/5w equivalent red stop/tail with white number plate illumination.
Converts Lucas 525, 529, 564, 679, 917, Miller 38ET, Vincent type and other motorcycle tail lamps where the number plate lens is the full depth of the lens, to LED operation.
Available in 6v and 12v positive or negative earth
Supplied with fitting kit and instructions
Part No. LB3
*Lamps pictured are for example*

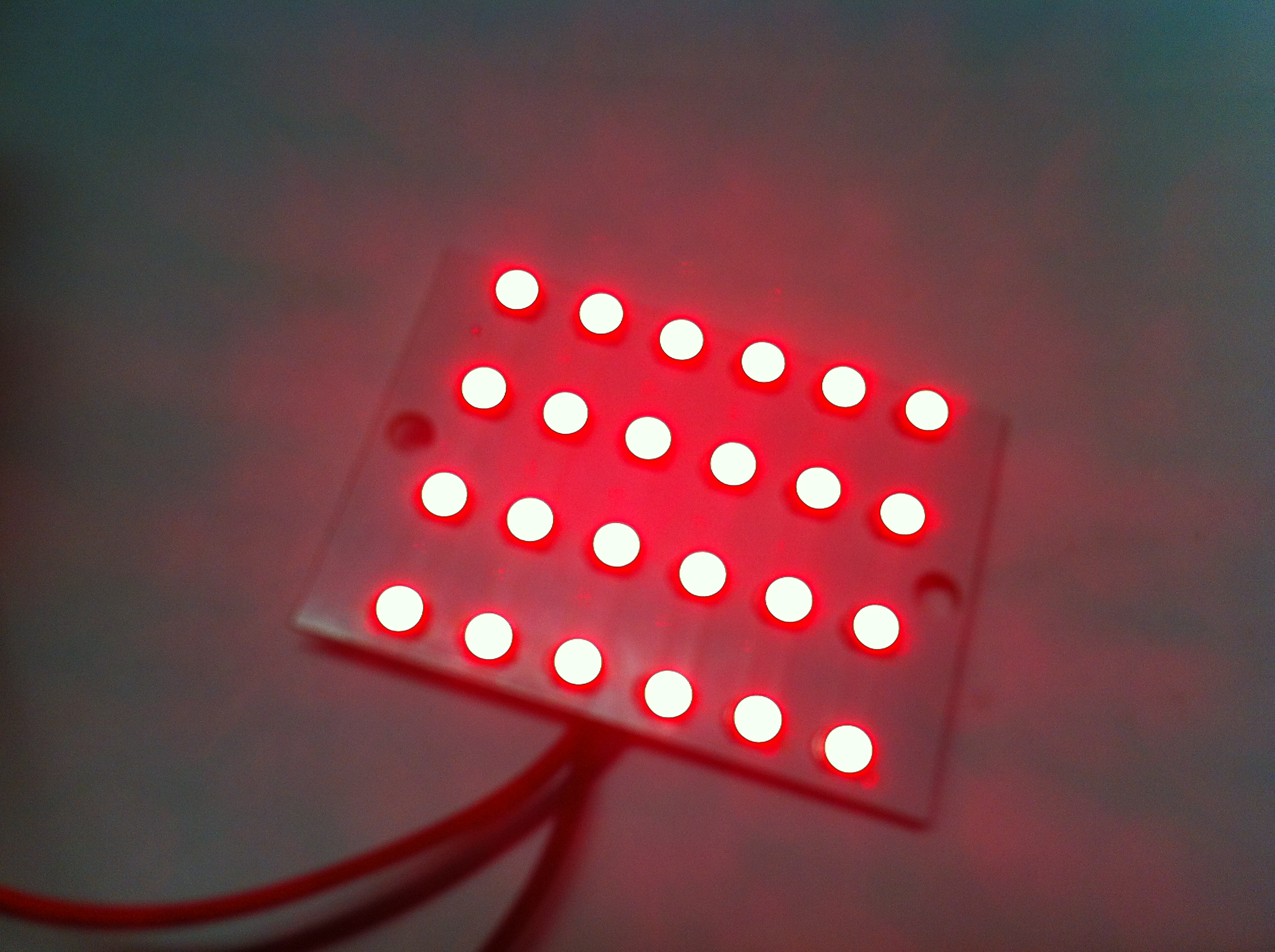

50 x 35mm light board pictured top left. 21/5w equivalent universal fitting red for stop/tail or fog lamp.
For use where no number plate lighting is required.
Converts rear wing mounted lamps such as Lucas 549, 471 and other makes inc. aftermarket lamps to bright LED operation.
Use to convert most UK, U.S and Continental lamps where bad bulb holders give trouble.
No more bad bulb holder problems!
21w section can be used to convert rear fog lamps.
Available in 6v and 12v negative and positive earth.
Supplied with fitting kit and instructions
Use with our DB10 relay (12v) to give hidden rear indicators
Part No. LB5
*Lamps pictured are for example*

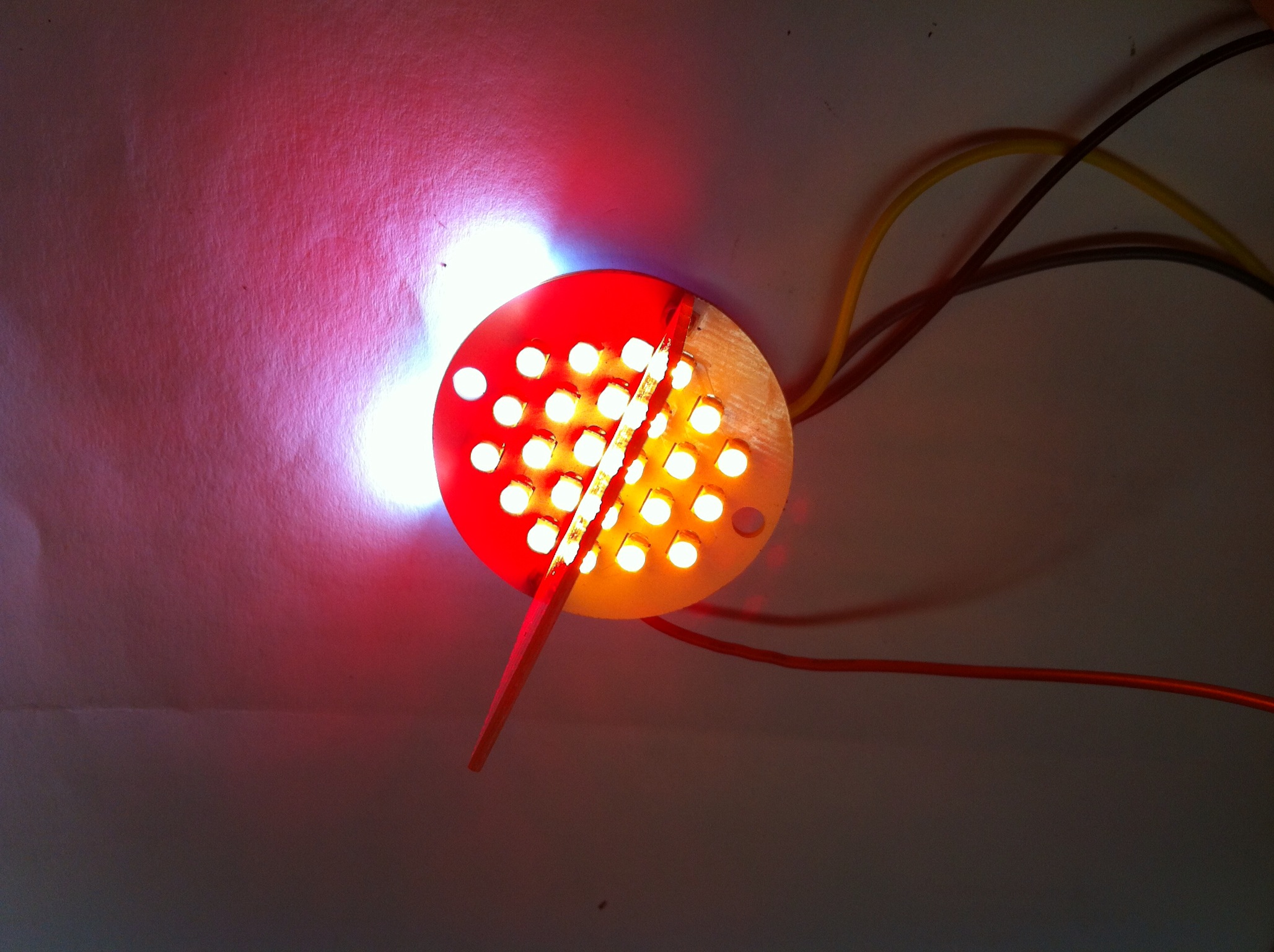

55mm diameter light board.
21/5/21w equivalent red and amber stop/tail/number plate and flashing indicators.
For converting Lucas ST38 Pork Pie lamps and HELLA pork pie lamps that include flashing indicators as pictured to bright LED operation.
Will also convert other lamps that have stop/tail and indicator bulbs next to each other such as Ford Model A with indicator conversion repro rear lamps and Hella rear lamps WITHOUT a centre fixing screw. Some modification to other lamps may be required.
Built in separator that can be trimmed to suit.
Number plate LEDs can be blanked off if not required.
Available in 6v and 12v negative or positive earth. HELLA versions are 6v and 12v negative earth only.
Supplied boxed with fitting kit and instructions
Now with improved mounting holes to suit all variants of ST38 lamp. HELLA version may require modification to fit some variants of lamp.
Part No. LB8
Don't pay over the top elsewhere for reproduction ST38 lamps with a stop/tail and indicator lenses or more than £50.00 each for a kit to convert to flashing indicators using normal bulbs.
Why?

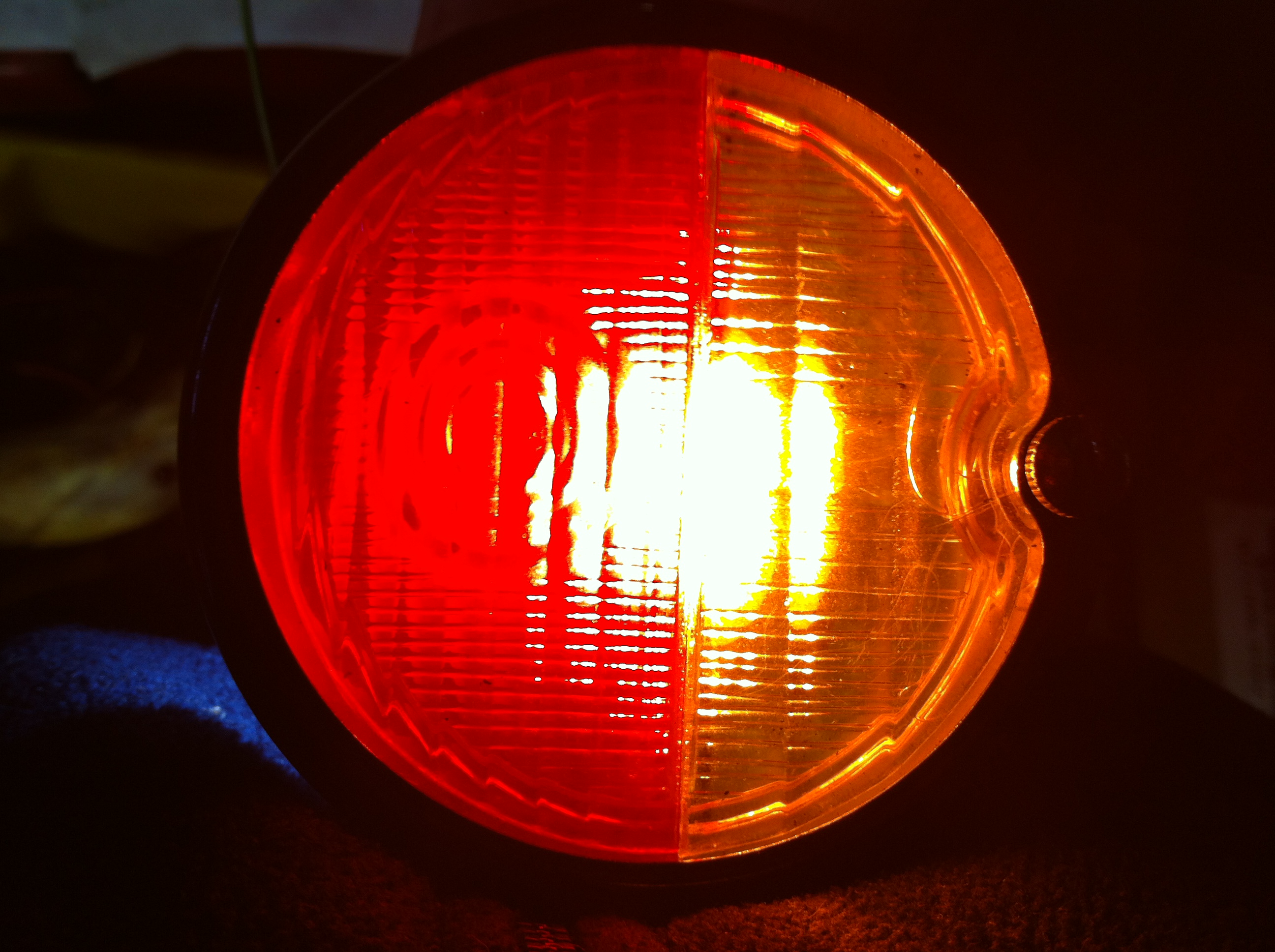

Our kit of parts converts TWO standard ST38 Pork Pie lamps to power saving LED stop/tail/number plate and indicator.
The kit consists of:
2 x LB5 light boards with fittings and instructions
2 x direct replacement red/amber lenses.
£54.95
Used with our our LED white/amber side/flasher bulb in your front sidelights and our LED flasher unit this is a convenient way to upgrade to hidden flashing indicators.
Wiring diagram available on request
Part No. STFL1
Replacement lens only. Combined red and amber for genuine or repro Lucas ST38 type Pork Pie lamps. Use with our light board Part No. LB5 to convert a standard red stop/tail lamp to stop/tail and flasher.
Sold singly or in pairs
Part No. LB2
*Lamps pictured are for example*
55mm diameter light board.
21/5w equivalent red stop/tail with white number plate illumination.
Converts all variants of the Lucas ST38 Pork Pie lamp, ST51 D lamp (inc. resessed type) and standard type Ford Model A rear lamps as pictured to LED operation.
Use also in Hella rear lamps (with or without centre fixing screw)
When used on the early split lens ST51 both lenses become stop/tail together
Available in 6v and 12v positive or negative earth
Supplied with fitting kit and instructions
See part numbers LB5 and LB8 to convert a standard red Pork Pie lamp to stop/tail/flasher type. See also part no. LB6 to convert a D lamp to stop/tail and flasher.
Part No. LB4
*Lamps pictured are for example*
40mm diameter light board pictured top left. 21/5w equivalent universal fitting red for stop/tail or fog lamp
For use where no number plate lighting is required.
Converts Lucas 539, 672, 692 and others to bright LED operation.
Use to convert most UK, U.S and Continental lamps where bad bulb holders give trouble.
21w section can be used to convert rear fog lamps.
Available in 6v and 12v bi-polarity
Supplied with fitting kit and instructions
Use with our DB10 relay (12v) to give hidden rear indicators
Part No. LB6
**NEW**
*Lamps pictured are for example*

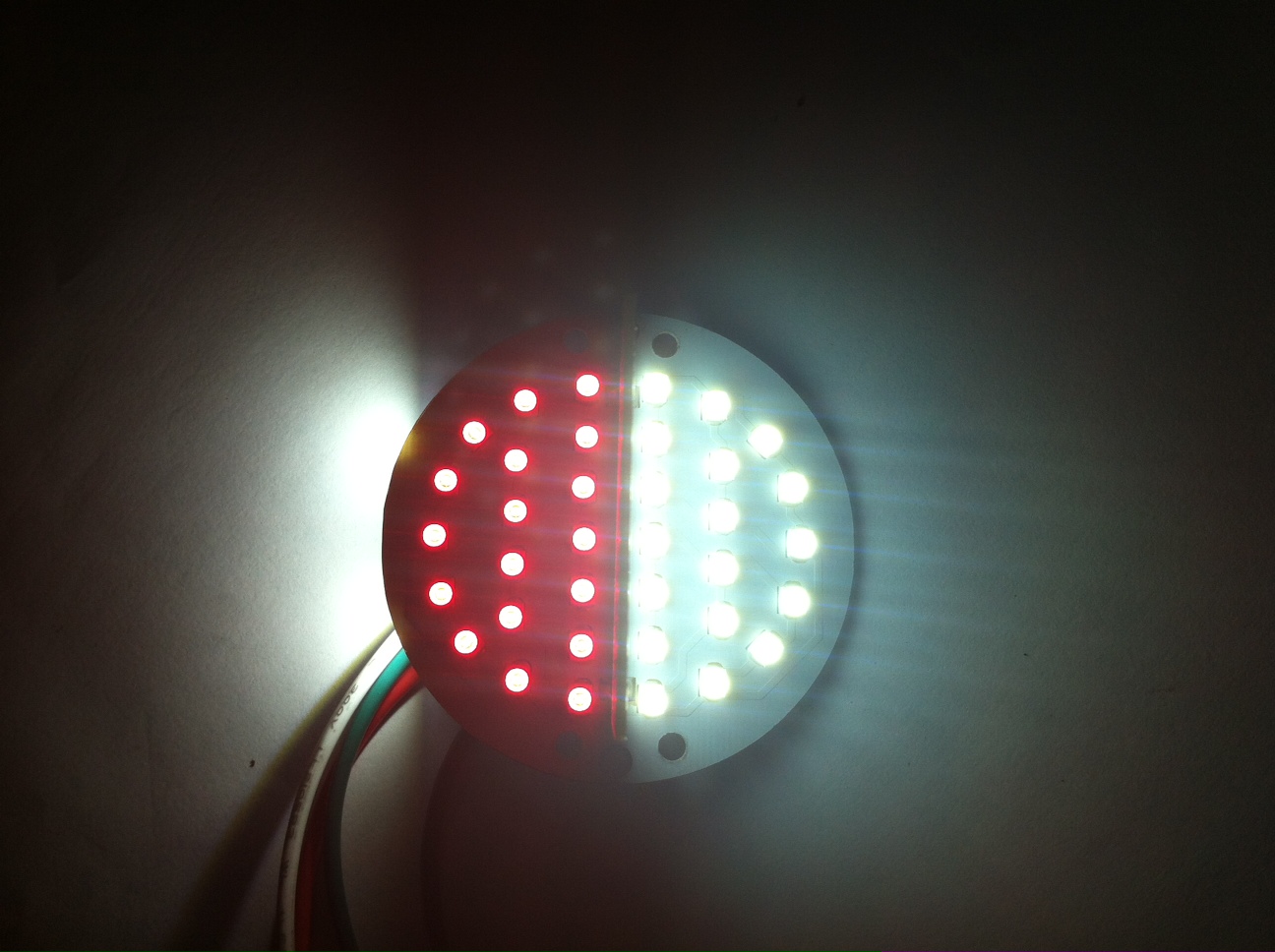

55mm diameter light board pictured top.
21/5/21w equivalent red and white stop/tail/number plate and flashing indicators or reverse light.

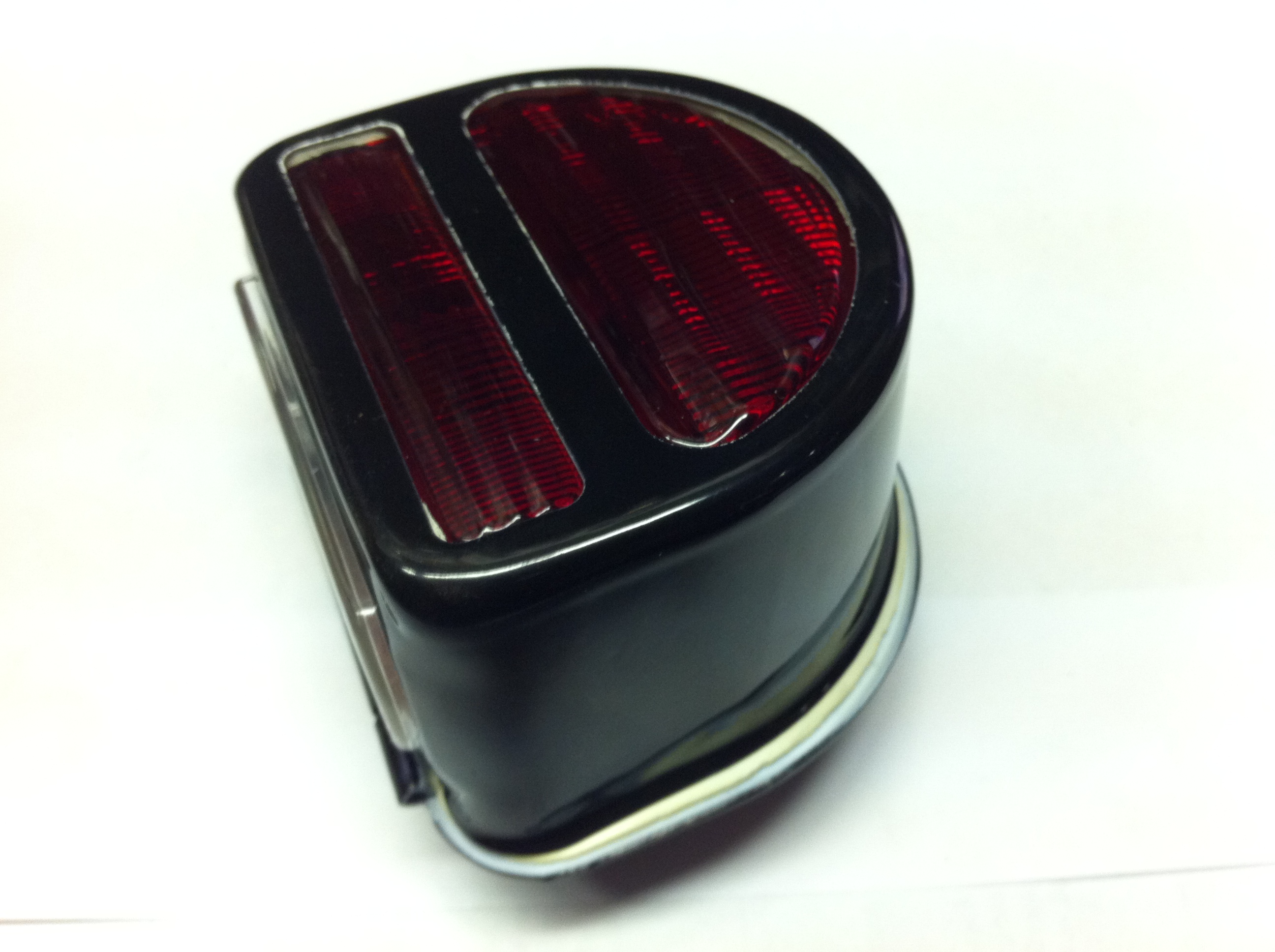

For converting Lucas ST51 D lamps as pictured (inc. early split lens and recessed type) to include red flashing indicators or white reversing lamps.
Will also convert other lamps that have stop/tail and indicator bulbs next to each other such as Ford Model A with rear lamps and Hella rear lamps WITHOUT a centre fixing screw. Some modification to other lamps may be required.
Used with our our LED white/amber side/flasher bulb in your front sidelights and our LED flasher unit this is a convenient way to upgrade to hidden flashing indicators.

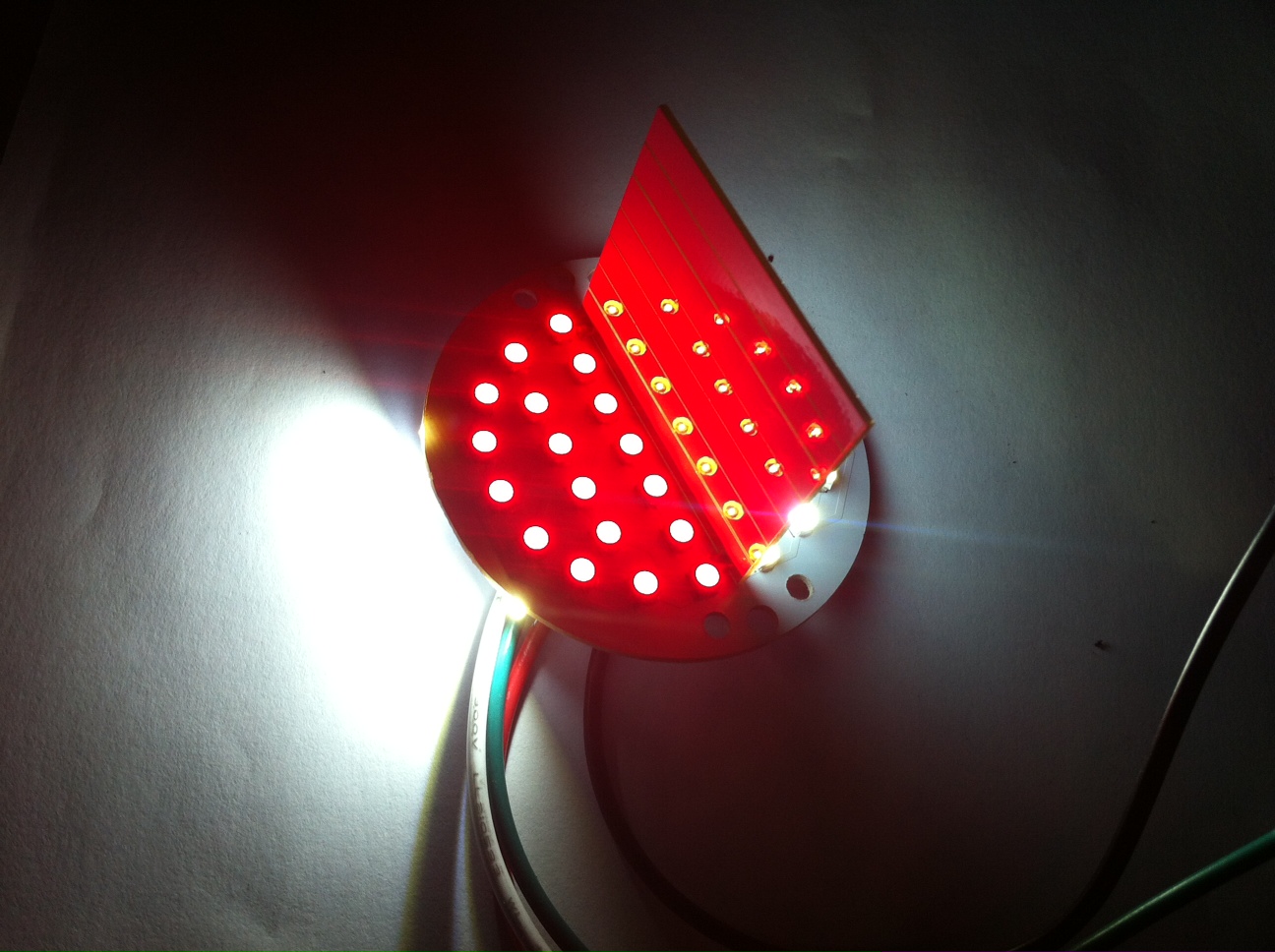

Built in separator that can be trimmed to suit.
Number plate LEDs can be blanked off if not required.
Available in 12v positive or negative earth.
Supplied boxed with fitting kit and instructions
6 mounting holes.
Part No. LB7
*Lamps pictured are for example*
40mm diameter light board pictured top left.
21w equivalent universal fitting amber for flashing indicators.
Converts Lucas 539, 594, 691 and 794 and many others to LED operation.
Ideal to replace nasty festoon bulbs
Can be used behind a white or amber lens to give an amber flasher.
Available in 6v or 12v, negative or positive earth.
Supplied with fitting kit and instructions
Requires our LED compatible flasher unit
